12V/24V LED Dimmer Switch - Stepless PWM Dimming, Brushed Aluminum, 180W Max

Premium 12V/24V LED Dimmer Switch – Stepless PWM Dimming, Brushed Aluminum, 180W Max

Brand: Obeaming

Upgrade your lighting system with the Obeaming 12V/24V LED Dimmer Switch, engineered for smooth, flicker-free brightness control from 5% to 100%. Perfect for caravans, campervans, RVs, boats, tiny homes, and custom lighting projects, this dimmer uses advanced PWM (pulse-width modulation) technology to deliver energy-efficient and precise dimming for LED, halogen, and incandescent lights.

✅ Key Benefits & Features

Stepless Dimming Control – Smooth, flicker-free brightness adjustment (5%–100%) with PWM dimming.

Push On/Off with Memory Function – Single press to switch on/off, automatically remembers your last brightness level.

Rotary Knob Control – Intuitive and precise adjustment with a modern dimmer dial.

🖤 Modern & Durable Design

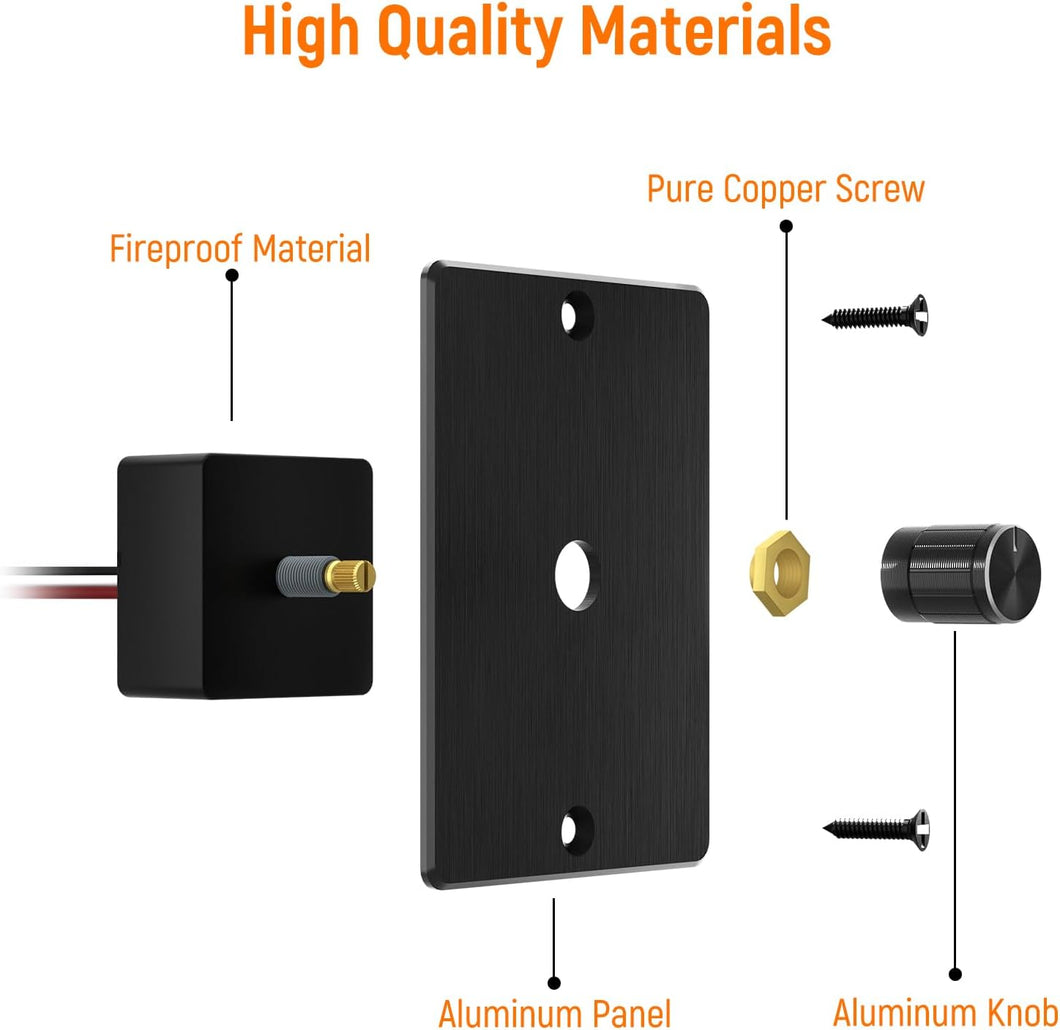

Premium brushed aluminum faceplate (3.5" x 2.5") for a sleek, professional look.

Compact flush-mount fit – ideal for tight installation spaces in vans, boats, or wall panels.

🔧 High Power & Safety Built-In

Max Load Capacity – Up to 180W (15A @ 12V, 7.5A @ 24V).

Wide Voltage Compatibility – Works with both 12V DC and 24V DC systems.

Built-in Surge Protection – Ensures long-lasting, safe performance.

🛠️ Quick & Easy Installation

Cutout size: 1-5/8” x 1-5/8” x 7/8”.

Includes mounting screws and quick-start guide.

🌎 Engineered for Reliability

Designed in California and backed by a 5-year warranty.

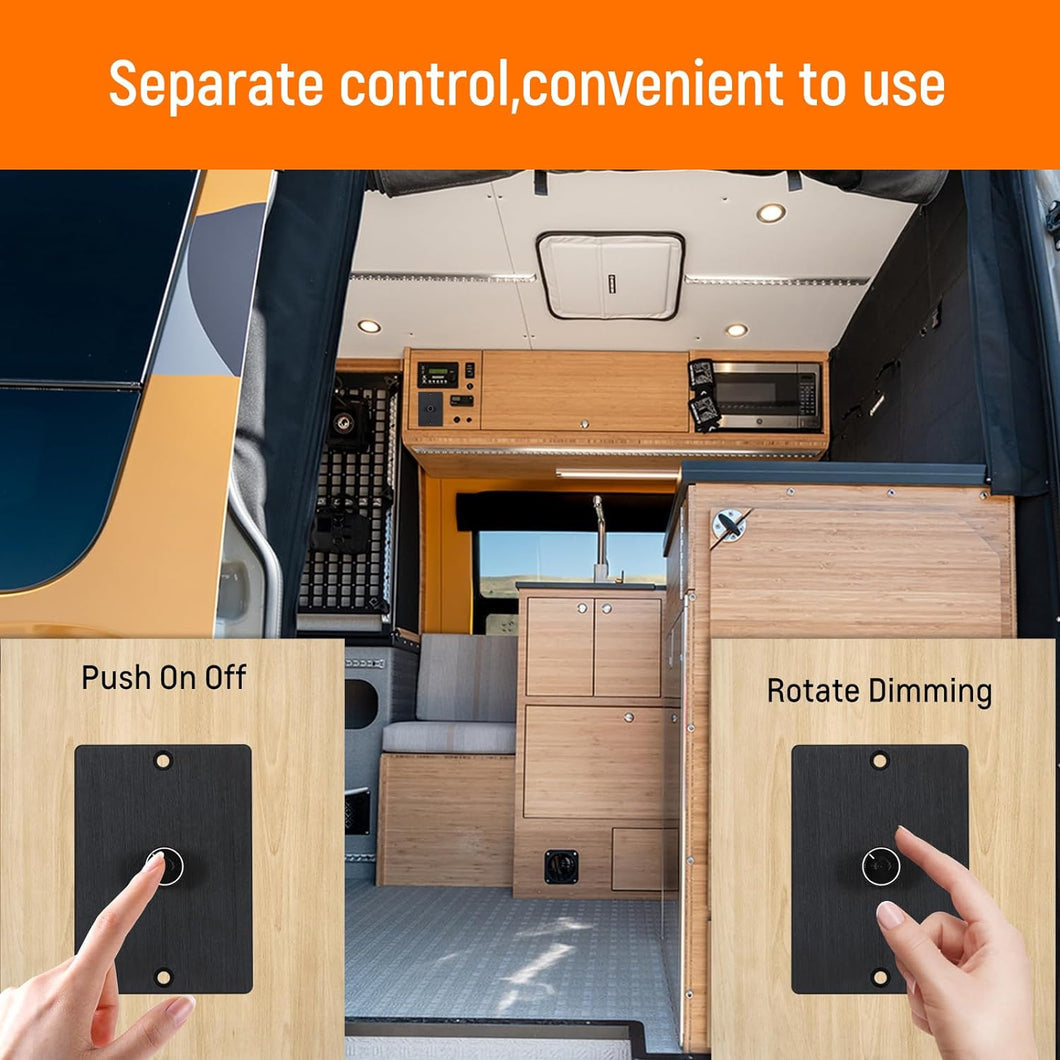

Ideal for campervan conversions, off-grid solar setups, marine lighting, RV upgrades, and tiny house builds.

💡 Compatible With:

LED strip lights

Halogen bulbs

Incandescent lights

12V & 24V DC lighting systems

📐 Technical Specifications:

Voltage: DC 12V–24V

Max Load: 180W

Dimming Method: Low-side PWM

On/Off Control: Push-button

Dimming Control: Rotary knob

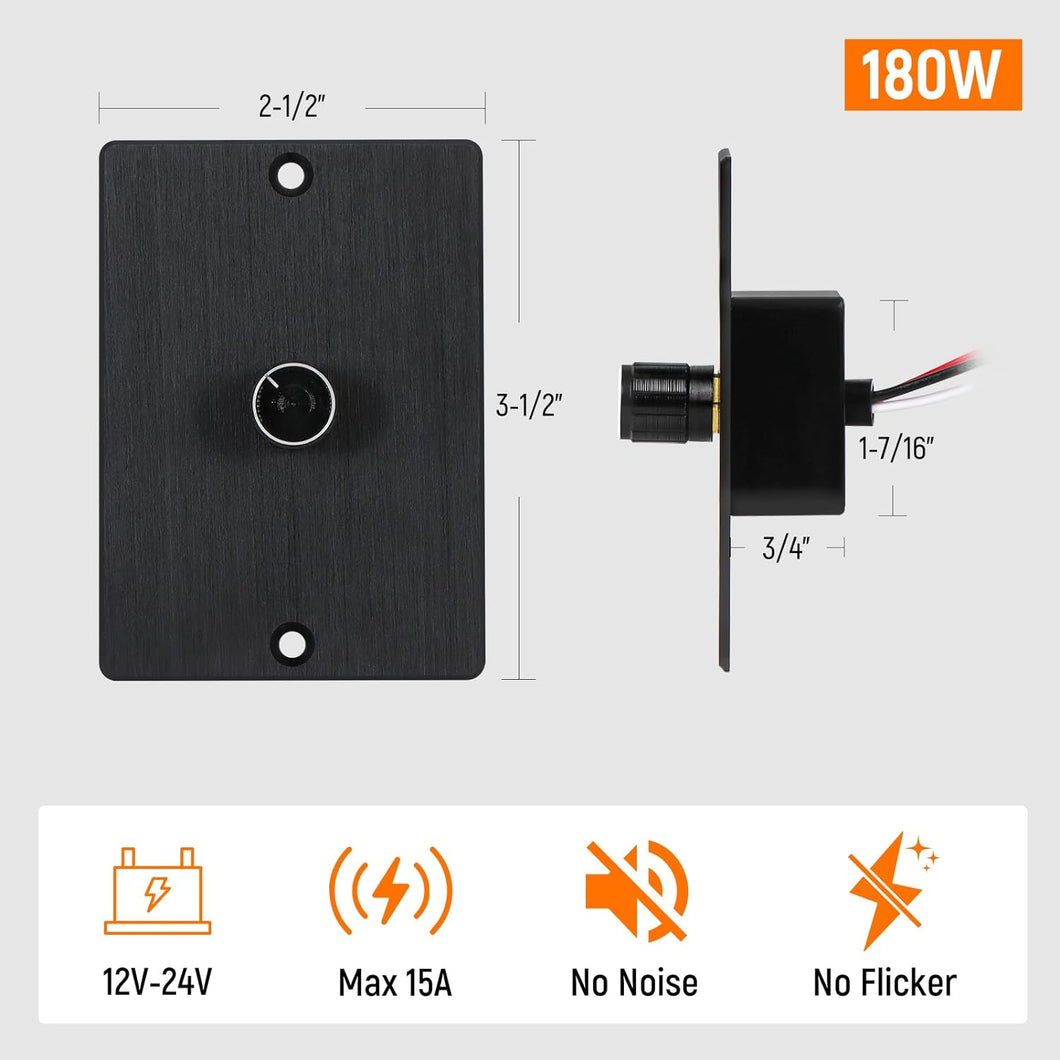

Faceplate Size: 3.5" x 2.5"

Cutout Size: 1-5/8” x 1-5/8” x 7/8”

This premium 12V/24V LED dimmer switch is the perfect upgrade for anyone wanting reliable, stylish, and energy-efficient lighting control in mobile or off-grid environments.
